Look, I’ve been turning wrenches and captaining boats for over thirty years. I can’t tell you how many times I’ve seen a guy tearing his hair out because his Mercruiser Alpha One creeps into the red at idle, but magically cools down the exact second he hits the throttle and gets on plane. Let me tell you right now—that’s not a ghost in your cooling system. It’s a classic clue.
Most boaters—and even some green mechanics—will dive straight for the Impeller. Honestly, that’s the right first move. But what if you’ve already swapped the raw water pump and that needle is still climbing at 650 RPM? The answer might be sitting on the back of your sterndrive, not inside it.
Grab a cup of coffee. We’re going to walk through the real reasons your Alpha One is running hot at the dock, from flow margins to a Clever Prop pitch trick that almost nobody talks about.
How to Read the Pattern Before You Pull Anything Apart
When the temperature climbs past 190°F at idle but drops back to 170°F when you nudge the throttle up to 1,200 RPM, the Boat is telling you exactly what’s wrong. You don’t have a completely broken cooling system; you have a marginal flow problem at low pump speeds.
The Captain’s Rule is simple: Never turn a wrench until you’ve watched the water.
Before you remove a single bolt, put your rig on flush muffs, turn the hose on full blast, and idle the engine. Walk to the stern and watch your exhaust output:
-
Strong, continuous flow: The Impeller is priming and pumping just fine. We need to look at restrictions or engine load.
-
Weak flow that improves with throttle: You’ve either got a tired impeller with rounded vanes or a sneaky suction leak in your water pump circuit.
-
Zero water at idle: Shut her down immediately. You’ve likely got a burnt impeller or a hard blockage like a plastic bag sucked into the intake.
A fresh Alpha One raw pump should spit out about 6–9 GPM at idle. But notice how small that margin is? If a worn impeller drops that to 4–5 GPM, you won’t notice it at 3,000 RPM where it’s pumping 30+ GPM. But at idle? That’s when she overheats.
Why Your Alpha One Struggles to Keep Cool at Idle
Here’s the honest truth about the Alpha One: the raw water pump is mechanically driven by engine speed. At 600–700 RPM, it is scraping the absolute bottom of what the cooling system demands. It operates on a knife’s edge.
Think about it. You’ve been cruising out on open water at a crisp 160°F. You throttle back, pull into a long no-wake zone, and join the line of boats waiting for the ramp. After a few minutes, you hear the warning alarm. The gauge says 200°F. You bump the throttle in neutral, and boom—it drops right back to normal.
Pay attention to where it gets hot first. Your dash gauge is just averaging the temperature after the left and right exhaust circuits merge. I always tell my guys to put a bare hand on the exhaust risers after five minutes of idling (carefully, of course). If one side is warm and the other is hot enough to burn you, you have a localized flow restriction—likely salt scale or rust—that the dashboard gauge is glossing over.
Choosing the Right Replacement Prop: Fix the Load, Fix the Overheat
Alright, you’ve replaced the impeller, the thermostat is opening at 160°F, and the hoses are clear. If you’re still running hot at low RPM, we need to talk about your Propeller. I know it sounds crazy, but oversized prop pitch causes more idle overheating than folks realize.
Pitch First. Material Second.
If your engine’s Wide Open Throttle (Wot) rating is supposed to hit 4,400–4,800 RPM, but you’re topping out at 4,000 RPM, your prop pitch is too steep. This means your engine is lugging. It’s working way too hard across the entire RPM band—including at idle.
When the engine works harder at 650 RPM, it generates more heat. But remember, your pump is still only putting out that baseline 6 GPM. The heat demand outpaces the water flow.The fix? Drop your pitch by 2 inches (for example, move from a 21-pitch to a 19-pitch). This takes the load off the engine, Wot RPM comes back up, and your idle overheat naturally disappears.
My Go-To Recommendation for Props
Once you’ve figured out the pitch, you have to choose between aluminum and stainless steel. Aluminum is great for family cruising and acts as a sacrificial fuse if you hit a rock. Stainless is rigid, holds its shape, and is perfect for heavy towing or high-speed offshore runs.
Over the years, I’ve rigged countless sport boats and fishing rigs. When I need a prop that runs true right out of the box, I always point my crew to VIF Propellers. Their Alpha One lineup covers both Generation I and II perfectly. Whether you need an everyday aluminum 4-blade to smooth out your low-speed handling or a high-raked stainless unit to dig in through tight turns, VIF offers reliable, direct-fit replacements without the insane marine markup. Plus, their site makes it incredibly easy to filter by Gen, material, and pitch so you get exactly what your hull needs.
The Captain’s Quick-Reference Diagnostic Checklist
If you’re dealing with the classic “idle hot, cruise cool” scenario, follow my exact sequence. Do not skip steps.
-
Verify the Gauge: Point an IR thermometer directly at the thermostat housing. If the IR says 160°F but your dash says 200°F, you have a lazy or broken sender, not an overheat.
-

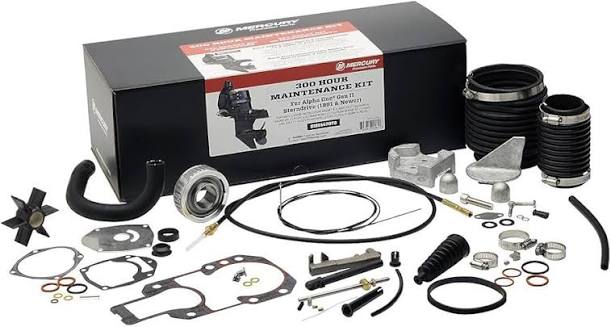

Test the Housing Flow: Pull a hose at the thermostat housing, start the engine on muffs, and dump it into a bucket. If the flow is weak or pulsing, rebuild your Alpha One impeller kit.
-
Find Suction Leaks: Run your hands along the pickup hoses. A tiny air leak at a loose clamp will absolutely destroy pump suction at low RPM.
-
Boil the Thermostat: Drop your thermostat in a pot of hot water. It should crack wide open by 160–170°F. If it’s sticky, toss it and install an OEM replacement.
-
Check the Inlet Screen: A plastic bag or a cluster of barnacles on your transom pickup grate will choke flow before the water even reaches the pump. Give it a visual check.
The Bottom Line
Listen, your Alpha One’s temperature gauge doesn’t lie, but it only tells half the story. Start with the cheap, consumable stuff—your impeller and thermostat. Put your hands on the hoses, check the risers, and make sure she’s breathing right.
But if you’ve done the obvious maintenance and the overheat still haunts you in the marina, check the prop. Dialing in your pitch relieves the low-speed load your engine is fighting. Grab the right replacement prop from VIF Propellers, swap it out, and get your Boat back on the water where she belongs. Stay safe out there, and I’ll see you on the water!
